• Digital Voltmeter

    ดิจิตอลโวลท์มิเตอร์

    SVM-96 Big Display จอแสดงค่าแบบดิจิตอลรุ่นใหม่
    หน้าจอแสดงตัวเลขขนาดใหญ่มองเห็นได้จากระยะไกล
    design มิเตอร์ใหม่ทั้งหมด

  • SPECIFICATION
    Example Model : SVM-96

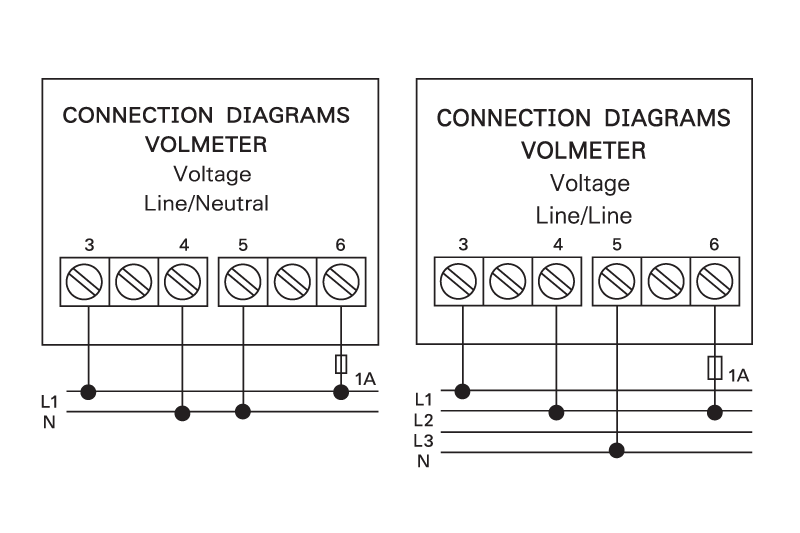

     • Connection : LN, LL
     • Operating Voltage(Un),*
          Operating Range (∆U) : AC220V + 10%
          Operting Frequency (f) : 45-65Hz
     • Accuracy : 0.5%FS
     • Measuring Range : 10-600 V
     • Power consumption (Pcons) : <4 VA
     • Measuring Input(Iin) : 0, 05-5, 5A
     • Current Transformer Ratio(Ct) : 5...9995/5A
     • Operting Frequency(f) : 30.0-99.9Hz
     • Burder : <1 VA
     • Equipment Protection : Double insulation(   ),Measuring Category III
     • Ambient Temperature : -5 °C ; +50°C
     • Degree of Protection : IP 40(Front Panel)
     • Installations    : Flush mounting with rear terminals

  • FEATURED
    Example Model : SVM-96
